Retractor ERL Series
Catalog / Manual/CADFeature

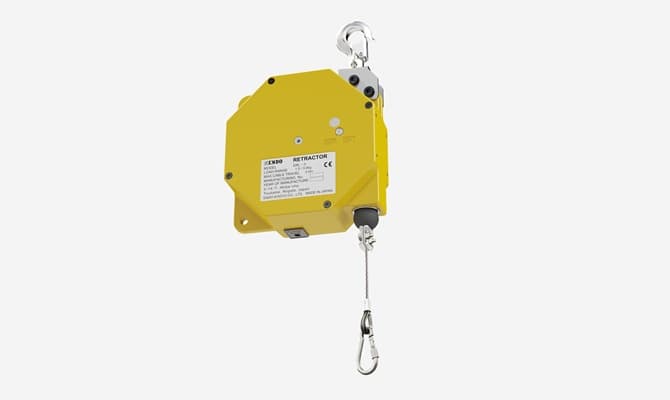

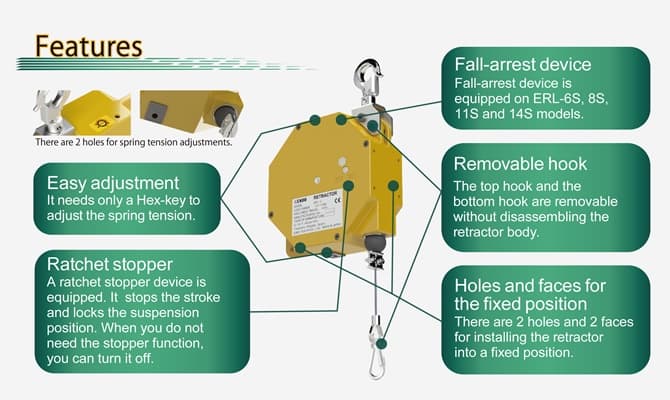

- The retractor is a spring balancer whose tension of a spring is changed with an extension of a wire rope.
- Maximum wire rope travel is relative to the setting of the spring tension. (See catalog).
- Fall-arrest device is equipped on ERL-6S, 8S, 11S and 14S.
- The ratchet stopper device can be turned on or off according to your requirement.
- The top hook can be detached without disassembling the retractor body.
- ERL-8 is a successor model to ER-10A/10B.
Gallery
Feature
Retractor ERL Series
Specifications
※Wire length varies depending on tension setting and suspension load
(see catalog)
| Model |
Fall prevention device |
CE Certification |
Capacity (kg) |
Wire
rope travel (m)※ |
Mass (kg) |
|---|---|---|---|---|---|
| ERL-3 | - | Yes | 1.5～3.0 | 4.0 | 3.8 |
| ERL-6 | - | - | 3.0～6.0 | 4.0 | 4.4 |
| ERL-8 | - | - | 5.0～8.0 | 4.0 | 4.8 |
| ERL-11 | - | - | 8.0～11.0 | 4.0 | 5.1 |
| ERL-14 | - | - | 11.0～14.0 | 4.0 | 5.1 |
| ERL-6S | Yes | Yes | 3.0～6.0 | 4.0 | 4.4 |
| ERL-8S | Yes | Yes | 5.0～8.0 | 4.0 | 4.8 |
| ERL-11S | Yes | Yes | 8.0～11.0 | 4.0 | 5.1 |
| ERL-14S | Yes | Yes | 11.0～14.0 | 4.0 | 5.1 |
