ENDO's slip ring is excellent on durability, quality and more. Slip ring assembly Slip rings are used to supply current to all kinds of rotating equipment. They are used for example on rotating cranes, manipulators, rotary tables, carousels, antenna installations, theatre stages as well as on all cable reel. ENDO offers a large variety of standard models for variety of specification and customer needs. Therefore, please feel free to ask for any question, your particular needs and requirements. For specification details and advises, please feel free to ask us.
ENDO's slip ring qualities:
- SPM model is able to correspond and use for minute current.
- SR model and SRE model is able to apply for signal and power transmission.
- Silver brush would reduce contact resistance and minimize noise.
- New product, SRE model is designed for high-speed rotations.
- ENDO's slip ring is compact design, lightweight and long durability.
Main Application
- Industrial machines, Machine tools, Wrapping machines, Food processing machines
- Medical equipment, Optical machines , Measuring instruments, Game machines
- Communication machines, TV camera , Printers, Turn tables, Robotics, Audio instruments

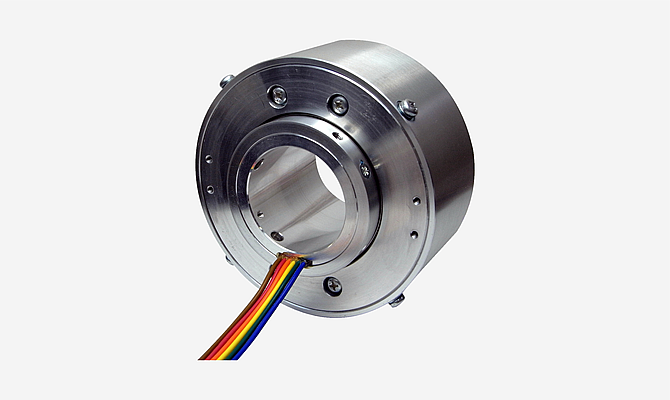

SPM model (For minute current)
- Max current: 0.2A-5A
- Number of poles: 4P up to 18P
- Max speed: 400rpm
- Mass(Weight): 26g-320g
| Construction |
|---|
| Brushes:Paladium alloy and Platinum alloy Rings:Copper alloy with full hard gold plating Body:Aluminum die-casting Shaft:Stainless steel 304 Direction Rotation:CW-CCW Temperature Range:-30/80 |

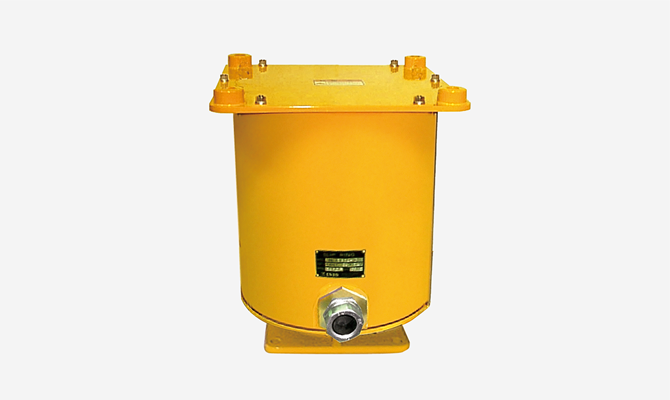

SR model (For signal and power transmission)
- Max current: 20A-100A
- Max speed: 60 rpm
| Construction |
|---|
| Brushes:Copper Rings:Copper alloy Brush Spring:Spring steel Brush Holders:Aluminum die-casting Direction Rotation:CW-CCW Temperature Range:-10/50 |

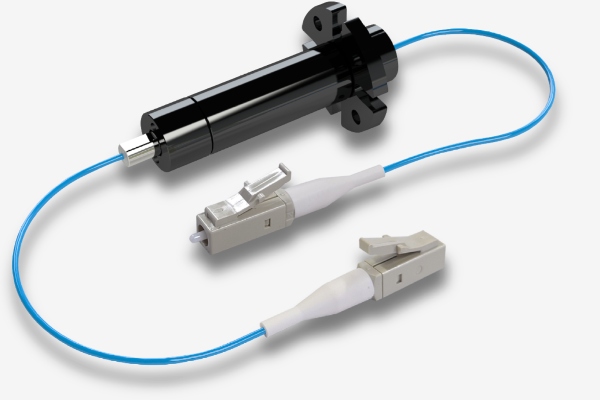

FORJ (Fiber Optic Rotary Joint)
- Fiber Type: 50/125 µm multi-mode fiber(OM2)
- Insertion Loss: ≤3dB
- Maxium Rotation Speed: ≤600rpm
- Mass(Weight): about 10g including fiber connector
