EHLK Series (CE Marked Model)

Features

Its capacity is 1000kg-2000kg. This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance.


  • Since the overload protector is built into the main unit, the risk of damage to the overload protector module is reduced .
  • The load chain is extendable.
  • EHLK series are equipped with an emergency stop button on the pendant switch as standard.

ATEX class : II3GD Ex h IIB T4 Gc / Ex h IIIB T135°C Dc

Dimensions

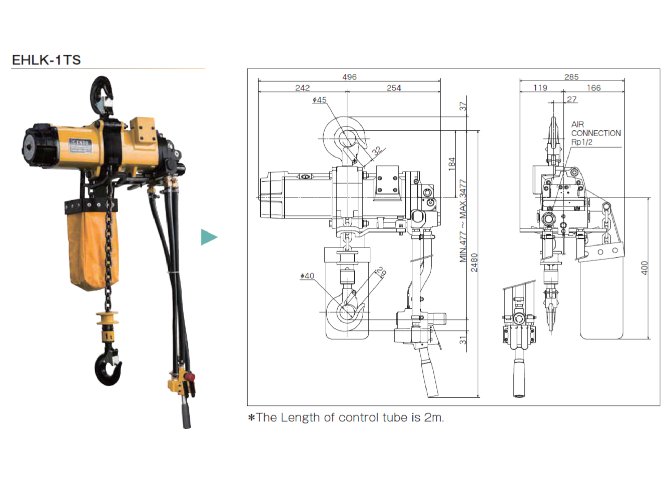

■EHLK-1TS

  • Rated load is 1000kg.
  • Single fall chain type.
  • The Length of control tube is 2m.
  • Emergency stop button is equipped on pendant controle.

■EHLK-2TW

  • Rated load is 2000kg.
  • Double fall chain type.
  • The Length of control tube is 2m.
  • Emergency stop button is equipped on pendant controle.

Download
Catalog
Specifications
Model Rated load
(kg)		 Stroke
(m)		 Air
pressure
Mpa(kgf/c㎡)		 Lifting
speed
(m/min)		 Air
consumption
(m³/min)		 Chain
(size x fall)		 Air inlet Mass
(kg)
EHLK-1TS 1000 3 0.4(4) 3.3 1.3 7.1×1 Rp 1/2 38.0
0.5(5) 4.3 1.4
0.6(6) 5.3 1.5
EHLK-2TW 2000 3 0.4(4) 1.6 1.3 7.1×2 Rp 1/2 46.0
0.5(5) 2.1 1.4
0.6(6) 2.6 1.5
Optional Accessories
plain-trolley
Plentrolly

By attaching it to the hanging source, it enables smooth lateral movement manually.

Plentrolly detail page
air-motor-trolley
Air Motor Trolley

This type of trolley is powered by air and transports a suspended load horizontally.

Air Motor Trolley detail page
