EHW-R Series
Features
Its capacity is 60kg-120kg. This Air Hoist features simplified functions. The control button on the pendant switch allows easy operation.
- This type is equipped with a device to prevent reverse winding.
- The air motor stops automatically when the wire rope is pulled out by 1.9m.
Gallery

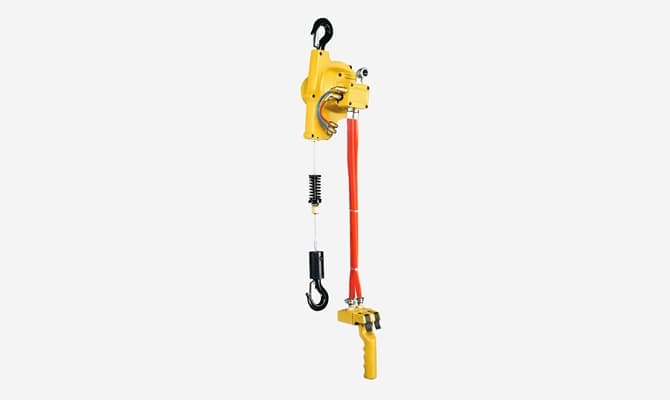

EHW-R Series
Download
Specifications
| Model | Rated load (kg) |
Stroke (m) |
Air pressure Mpa(kgf/c㎡) |
Lifting speed (m/min) |
Air consumption (m³/min) |
Air inlet | Mass (kg) |
|---|---|---|---|---|---|---|---|
| EHW-60R | 60 | 1.9 | 0.4(4) | 18.5 | 0.55 | Rc 3/8 | 9.5 |
| 0.5(5) | 22.5 | 0.7 | |||||
| 0.6(6) | 26.0 | 0.88 | |||||
| EHW-120R | 120 | 1.9 | 0.4(4) | 11.0 | 0.59 | Rc 3/8 | 9.7 |
| 0.5(5) | 13.5 | 0.75 | |||||
| 0.6(6) | 16.0 | 0.93 |
Optional Accessories
Plentrolly
By attaching it to the hanging source, it enables smooth lateral movement manually.
Plentrolly detail page
Air Motor Trolley
This type of trolley is powered by air and transports a suspended load horizontally.
Air Motor Trolley detail pageInquiry
