Position Balancer
Features
- This device is a spring balancer equipped with a stepping motor
- By controlling the motor, it is possible to automatically lower the suspended load to the set position and automatically raise it to the origin
- Automatic wire lowering and raising can be controlled by electrical signals
- The input of electric signals can be combined with elements such as buttons, sensors or timers
- It can be used like a normal spring balancer when the motor is not running
- Spring adjustment is safe and easy mechanism that does not cause rapid rewinding
- Upper hook is sold separately
Gallery

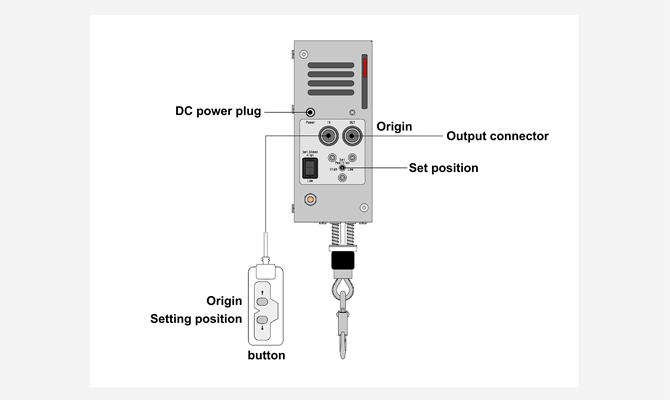

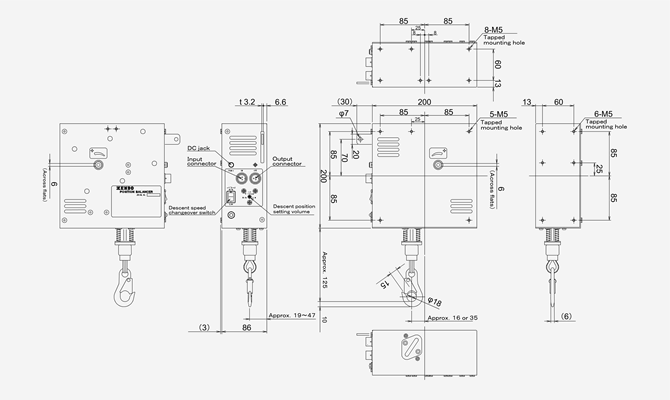

Outline drawing
Components

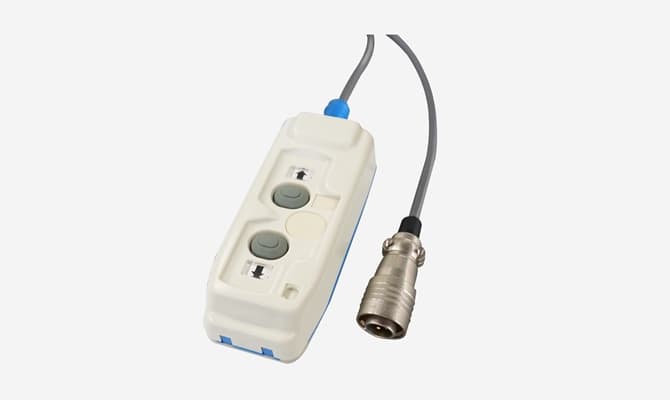

Pendant switch

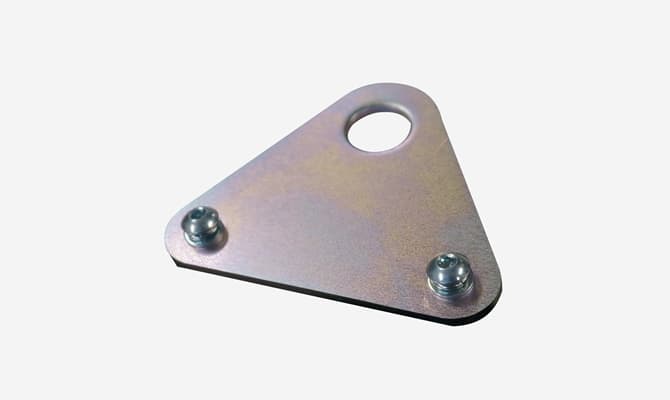

Auxiliary hanger

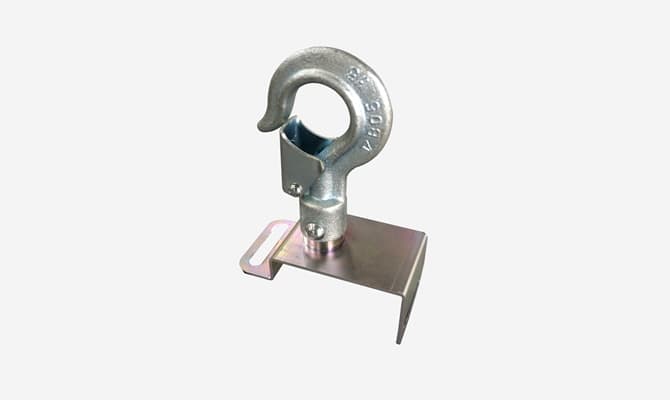

Top Hook(optional part)

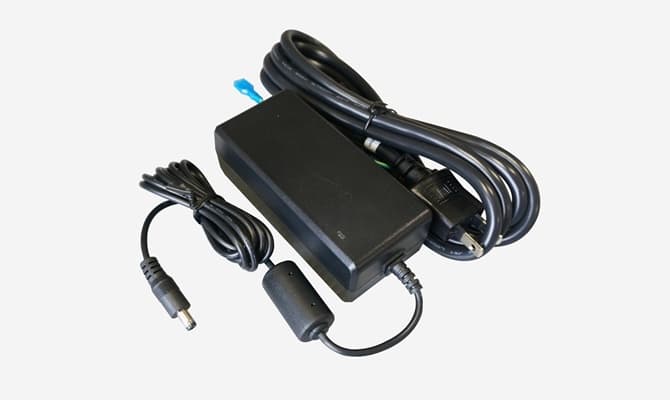

AC adapter(optional part)
Specifications
※When the vehicle is empty or out of balance, it cannot be lowered or raised or lowered by automatic
operation.
※Upper hook is optional
| Model | Capacity (kg) |
Main equipment Mass(kg) |
Stroke (m) |
Descent Setting Position(m) |
Descent speed (m/s) |
Ascent speed (m/s) |
Power Supply |
Maximum Power Consumption |
|---|---|---|---|---|---|---|---|---|
| PB3 | 1.5～3.0 | 4.2 | 1.2 | 0.3～0.9 | Low Speed 0.2～0.3 High Speed 0.3～0.5 |
0.2～0.3 | DC24V | 56W |
| PB4 | 2.5～4.0 | 4.3 | ||||||
| PB5 | 3.5～5.0 | 4.4 | ||||||
| PB7 | 5.0～7.0 | 4.5 |
Inquiry
Please wait for a moment until the form is displayed.
We apologize for the inconvenience, but if the form does not appear even after waiting for a while, please .contact us.
External Input
| Plug | Model | Manufacturer |
|---|---|---|
| Compatible plug (you need to prepare the plugs) |
PRC03-12A10-3AM10.5 (3 cores, plug) |
Tajimi Electronics Co., Ltd. |
| Input connector | PRC03-23A10-3AF (3 cores, receptacle) |
External Output
| Plug | Model | Manufacturer |
|---|---|---|
| Compatible plug (you need to prepare the plugs) |
PRC03-12A10-4F10.5 (4 cores, plug) |
Tajimi Electronics Co., Ltd. |
| Output connector | PRC03-23A10-4M (4 cores, receptacle) |
