Jib Crane
Features
- Floor fixed post type jib crane
- Aluminum rails are used for the running rails, enabling smoother operation than steel rails and I-beams.
- Since the jib can be turned 360 degrees, it can be safely and reliably transferred in combination with a hoisting machine.

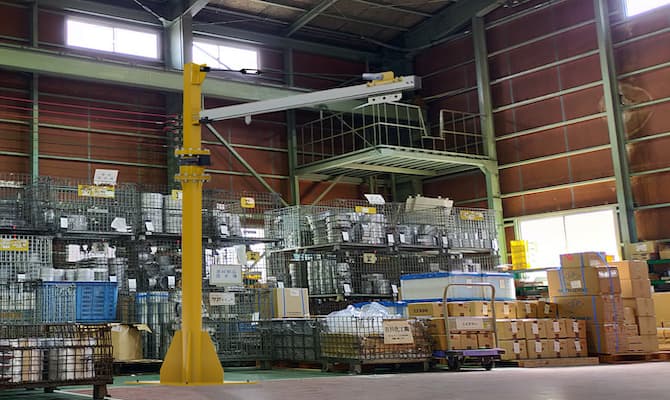

Product Image
Jib Crane

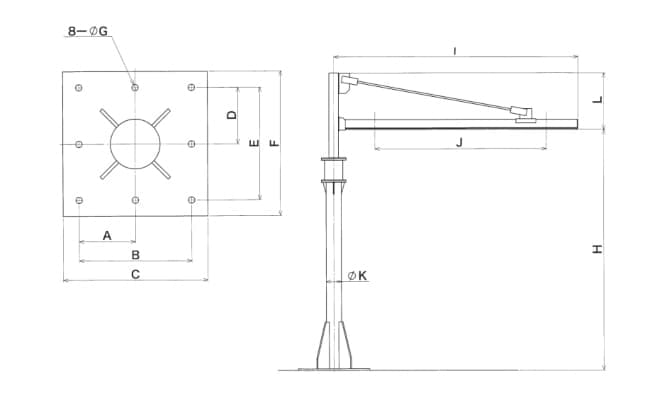

Dimensions
Download
Specifications
| Model | A (mm） |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
J (mm) |
K (mm) |
L (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EJS-2-20-300 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 2,000 | 2,095 | 1,140 | φ216.8 | 700 | 300 |
| EJS-2-30-265 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 3,000 | 2,095 | 1,315 | φ216.8 | 700 | 265 |
| EJS-3-20-170 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 2,000 | 3,095 | 2,235 | φ216.8 | 900 | 170 |
| EJS-3-30-150 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 3,000 | 3,095 | 2,235 | φ216.8 | 900 | 150 |
| EJB-2-20-400 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 2,000 | 2,110 | 1,140 | φ267.4 | 700 | 400 |
| EJB-2-30-400 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 2,110 | 1,140 | φ267.4 | 700 | 400 |
| EJB-3-30-250 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 3,110 | 2,235 | φ267.4 | 900 | 250 |
| EJB-4-30-120 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 4,110 | 3,235 | φ267.4 | 900 | 120 |
